KOSOO KHEC Heat shrinkable cable end cap with spiral adhesive coating
A poorly sealed cable end is an open invitation for moisture migration, leading to conductor corrosion, insulation degradation, and eventual system failure. Our heat shrinkable end cap with a precision-engineered spiral adhesive inner layer delivers a permanent, factory-grade environmental seal in a single heating step—turning a critical vulnerability into the most protected point in your cable run.
Appurtenance:
- Overview
- Recommended Products
Key Selling Points
Spiral Adhesive Inner Coating – Unlike caps with simple inner adhesive rings, the continuous spiral pattern guides molten adhesive to flow uniformly around the entire circumference during shrinking. Your Benefit: Eliminates voids and gaps, achieving a 100% circumferential bond that blocks moisture, salt spray, and chemical vapours from penetrating the cable end even under immersion conditions.
Dual-Layer Sealing Architecture – The tough, cross-linked polyolefin outer jacket provides electrical insulation and abrasion resistance, while the integrally coated hot-melt adhesive bonds firmly to all common cable jacket materials (PE, PVC, rubber). Your Benefit: One product replaces tape wrapping, mastic pads, and multiple shrink tubes, slashing installation time by over 50% and eliminating the risk of layered sealing failure.
Stress-Relieved Shape & Closure – The pre-molded dome end naturally sheds water and resists impact; the open end is designed to grip the cable jacket without pinching or cutting. Your Benefit: Protects stored energy cables awaiting termination, spare conductors in multi-core cables, and de-energized tails from physical damage, dust, and condensation during transport, storage, and standby service.
Hi-Temp Flexibility & Outdoor Durability – Fully functional from -55°C to 110°C, UV-stabilized, fungus-resistant, and compatible with direct burial conditions. Your Benefit: Suitable for outdoor termination points in solar farms, underground junction boxes, wind turbine nacelles, and marine installations, where sun, rain, and soil conditions test every seal.
Ideal for power distribution cable ends, telecom trunk cable stubs, temporary cable storage protection, and any application where a permanently sealed, maintenance-free cable end is required.
Description

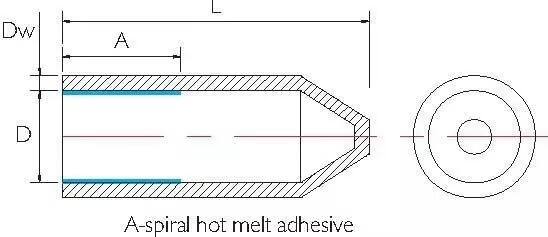

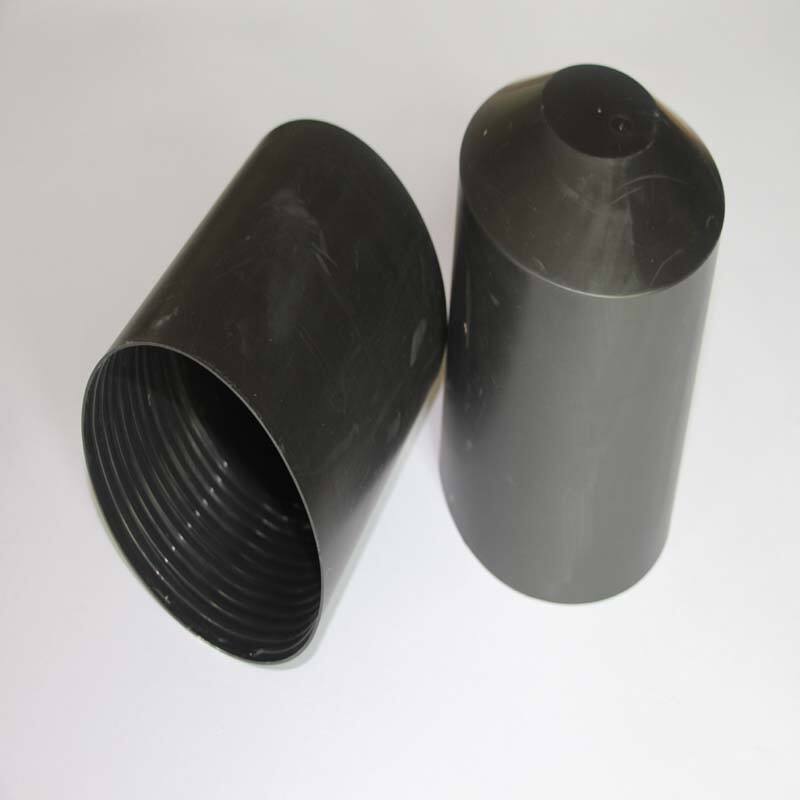

KHEC offers an economical means of sealing the end of power cable with a completely Watertight seal.The internal surface of the end cap has a layer of spiral coated hot melt adhesive,which retains its flexible properties after recovery.KHEC is recommended for application both in open air and on underground power distribution cables with PVC.Lead or XLPE sheaths.
Feature
Effectively offering protection against oxidation,Ozone,UV-rediation etc.
Coated with hot melt adhesive to ensure environment seal
Easily to fit into the cable end
Minimun fully shrink temperature :120℃.
